Introduction
Using these tools, you can gather important information about the state and outcome of the slicing.
Show legend
This feature tightly coupled with the actual coloring type selected. For example, it will show the legend of all the occurring GCode segment types if segment type coloring is selected.
Show GCode
Displays the actual GCode commands which will be executed by the 3D printer.

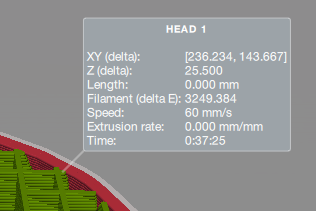

Show extruder statistics
Turning on this feature will display a small popup where all the necessary information of the current state will be shown.
Some values also show the delta values for the current command between brackets if there's any.

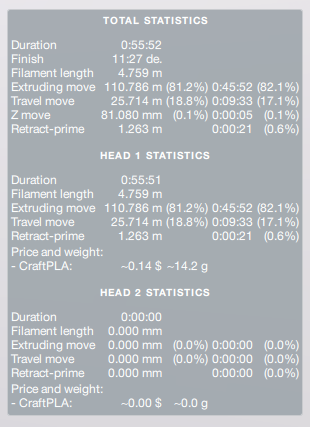

Show statistics
Will display a general statistics of the whole print process.
Show layer pauses
This function reveals a GCode pause management controls where you can add / remove layer pauses, and also see the pause position in the 3D view and on the vertical slider.
