Introduction

By default the whole GCode is visible in the GCode page. Our GCode simulator offers numerous ways to inspect the critical parts only.

Layer Navigation

Layer Range Slider

The Layer Range Slider in the right side of the window helps you navigate between layers:

• Two handles allow you to select an arbitrary layer range or one particular layer
• You can lock these handles together to examine a fixed number of layers with a movable window
• You can explicitly input a layer number into the layer textboxes
• After selecting the handle or the layer textbox, keyboard layer navigation is available via arrows and navigation keys (Home, End, Page Down, Page Up)

Line/Command Navigation

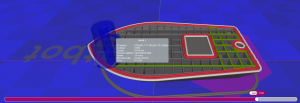

Command Navigation Slicer

With the Command Slider you can examine each line/command inside the current layer.

When you are navigating inside the layer, only the active layer will keep its colouring and every visible layer below it will be greyed out.

The direct number input and the textbox navigation works as same as with the Layer Range Slider.

• The current command line can be seen in the GCode Panel.
• The head statistics after the current command line can be seen in the Extruder Statistics Panel.
